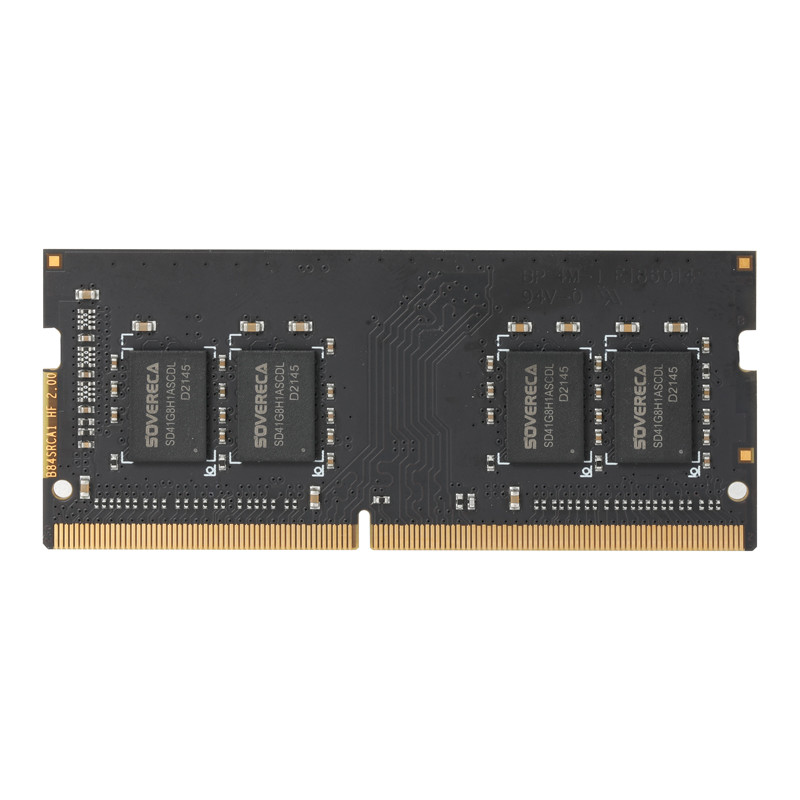

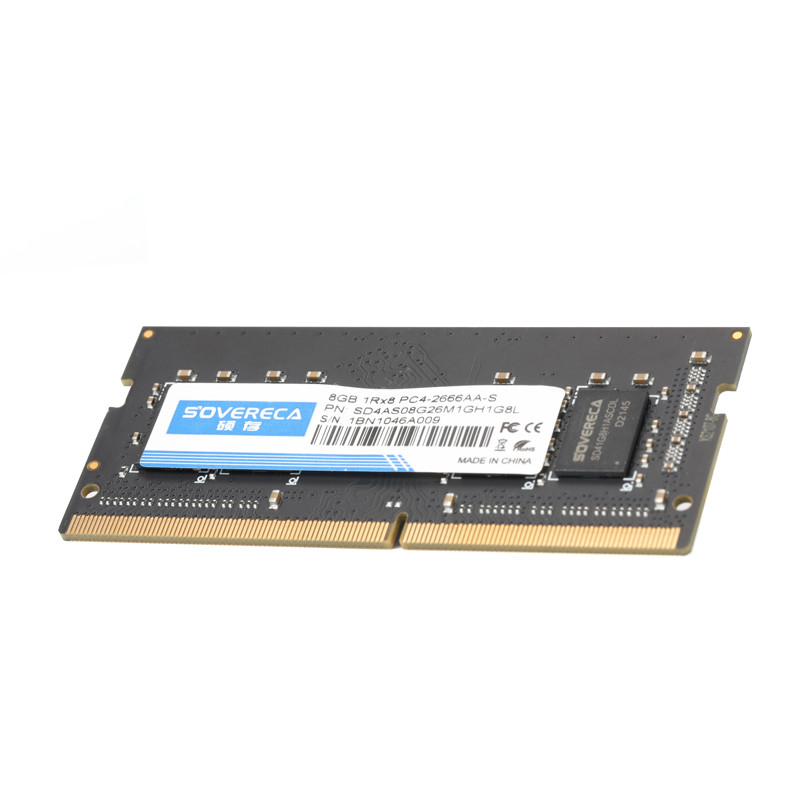

260 Pin Computer Ram Memory RAM DDR4 8GB 3200MHz SODIMM

RAM DDR4 8GB 3200MHz SODIMM

General Description:
SOVERECA DDR3 SO-DIMM is based on DDR3 DRAM FBGA components.
The SPD is programmed follow JEDEC standard for1600Mbps timing of 11-11-11-28 at 1.35v low power. This product design specification reference JEDEC standard (No. 21C) raw-card F3. This 204-pin DIMM uses gold contact fingers and requires 1.35v power supply .

TYPE	CAPACITY	SPECIFICATION	PICTURE
DDR3 SODIMM	4GB 1333 MHz 1600 MHz	Function Non-ECC Unbuffered Memory Pin Number 204 pin Voltage 1.35V Work Temperature 0~85℃ Board Size 67.6 x 30 mm ± 0.15 mm Thickness 1.0 ± 0.08mm(8-Layer) CL Value 11 Quality Warranty 3 Years
DDR3 SODIMM	8GB 1333 MHz 1600 MHz	Function Non-ECC Unbuffered Memory Pin Number 204 pin Voltage 1.35V Work Temperature 0~85℃ Board Size 67.6 x 30 mm ± 0.15 mm Thickness 1.0 ± 0.08mm(8-Layer) CL Value 11 Quality Warranty 3 Years
DDR3 UDIMM	4GB 1333 MHz 1600 MHz	Function Non-ECC Unbuffered Memory Pin Number 240 pin Voltage 1.5 V Work Temperature 0~85℃ Board Size 133.35 x 18.75 mm ± 0.1 mm Thickness 1.27 ± 0.1mm(8-Layer) CL Value 11 Quality Warranty 3 Years
DDR3 UDIMM	8GB 1333 MHz 1600 MHz	Function Non-ECC Unbuffered Memory Pin Number 240 pin Voltage 1.5 V Work Temperature 0~85℃ Board Size 133.35 x 18.75 mm ± 0.1 mm Thickness 1.27 ± 0.1mm(8-Layer) CL Value 11 Quality Warranty 3 Years
DDR4 SODIMM	4GB 2666 MHz	Function Non-ECC Unbuffered Memory Pin Number 260pin Voltage 1.2V Work Temperature 0~85℃ Board Size 69.6 x 30 mm ± 0.15 mm Thickness 1.2 ± 0.1mm(8-Layer) CL-tCD-tRP     19-19-19     Quality Warranty 3 Years
DDR4 SODIMM	8GB 2666 MHz 3200 MHz	Function Non-ECC Unbuffered Memory Pin Number 260pin Voltage 1.2V Work Temperature 0~85℃ Board Size 69.6 x 30 mm ± 0.15 mm Thickness 1.2 ± 0.1mm(8-Layer) CL-tCD-tRP   19-19-19   22-22-22   Quality Warranty 3 Years
DDR4 SODIMM	16GB 3200 MHz	Function Non-ECC Unbuffered Memory Pin Number 260pin Voltage 1.2V Work Temperature 0~85℃ Board Size 69.6 x 30 mm ± 0.15 mm Thickness 1.2 ± 0.1mm(8-Layer) CL-tCD-tRP     22-22-22     Quality Warranty 3 Years
DDR4 UDIMM	4GB 2666 MHz	Function Non-ECC Unbuffered Memory Pin Number 288 pin Voltage 1.2 V Work Temperature 0~85℃ Board Size 133.35 x 30.75 mm ± 0.15 mm Thickness 1.4± 0.1mm(8-Layer) CL-tRCD-tRP     19-19-19     Quality Warranty 3 Years
DDR4 UDIMM	8GB 2666 MHz 3200 MHz	Function Non-ECC Unbuffered Memory Pin Number 288 pin Voltage 1.2 V Work Temperature 0~85℃ Board Size 133.35 x 30.75 mm ± 0.15 mm Thickness 1.4± 0.1mm(8-Layer) CL-tRCD-tRP   19-19-19   22-22-22   Quality Warranty 3 Years
DDR4 UDIMM	16GB 2666 MHz 3200 MHz	Function Non-ECC Unbuffered Memory Pin Number 288 pin Voltage 1.2 V Work Temperature 0~85℃ Board Size 133.35 x 30.75 mm ± 0.15 mm Thickness 1.4± 0.1mm(8-Layer) CL-tRCD-tRP    19-19-19   22-22-22   Quality Warranty 3 Years
DDR4  UDIMM	32gb
DDR 5
